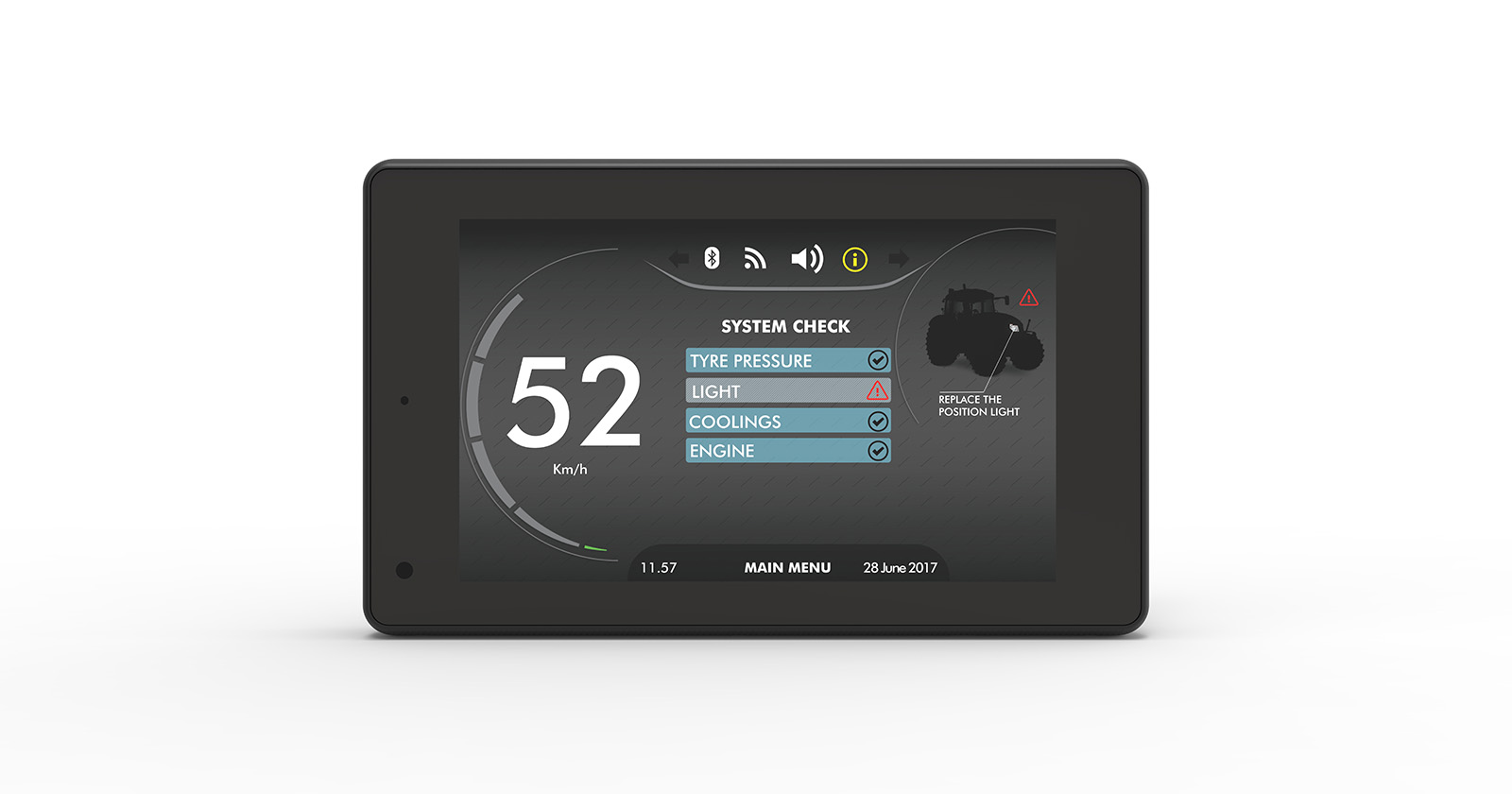

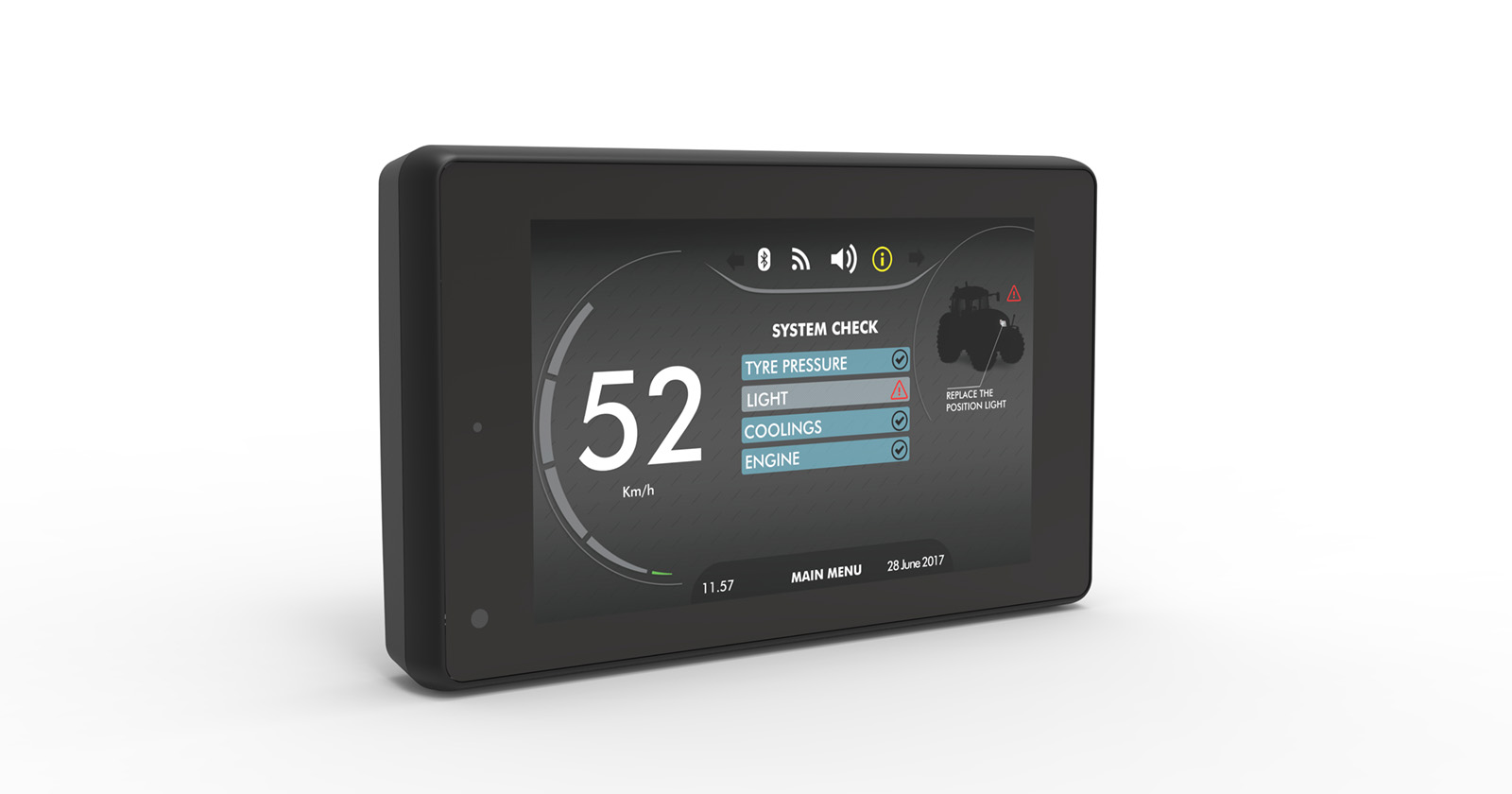

Giotto



Features

- Dimensions: 240 x 145 x 45 mm
- 8" color TFT LCD 800 x 480 pixel x 262k colors with optical bonding
- Multitouch screen (up to 10 touch points)
- Power supply: 12 Vdc (8-16 Vdc) and 24 Vdc (18-32 Vdc)
- Front glass with anti-reflection and anti-fingerprint treatments
- Protection degree: IP66
- 10 inputs, 2 outputs and 1 Vref 5 Vdc output
- 2 CAN bus, 1 LIN, 2 USB, 2 Ethernet BroadR-Reach, 1 RS232 interfaces and 2 analog video inputs
- WiFi
- Bluetooth (available from 2021)
- Loudspeaker mono, RTC, ambient light sensor
- Connectors: Tyco Superseal 34 pins, 2 mini BNC
- Android based device



Giotto K

Features

- Dimensions: 240 x 145 x 45 mm
- 8" color TFT LCD 800 x 480 pixel x 262k colors with optical bonding
- Mechanical keyboard (6 keys)
- Power supply: 12 Vdc (8-16 Vdc)
- Front glass with anti-reflection and anti-fingerprint treatments
- Protection degree: IP66
- 10 inputs, 2 outputs and 1 Vref 5 Vdc output
- 2 CAN bus, 1 LIN, 2 USB, 2 Ethernet BroadR-Reach,
- 1 RS232 interfaces and 2 analog video inputs
- WiFi
- Bluetooth (available from 2021)
- Loudspeaker mono, RTC, ambient light sensor
- Connectors: Tyco Superseal 34 pins, 2 mini BNC
- Android based device





Need additional product details? Register and download the Technical Data Sheet.
