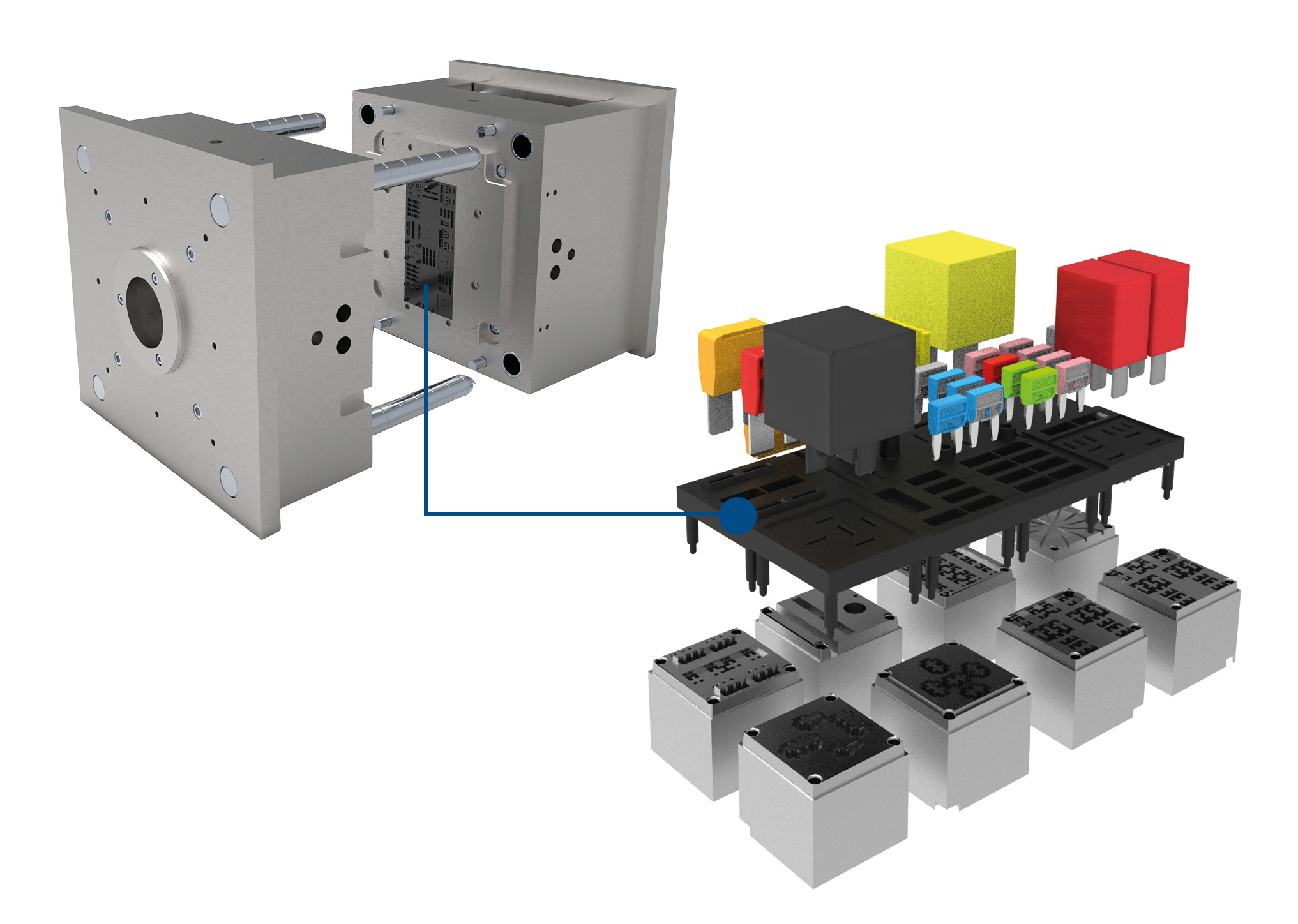

1 Customization starts from the injection mold
At the heart of the Cube Box concept is a thermoplastic injection mold designed to accommodate movable inserts. These inserts, each measuring 35x35 mm, can be freely positioned and oriented within the mold to create a customized fuse and relay mask. This modular approach allows manufacturers to generate a virtually infinite number of configurations using a single mold.

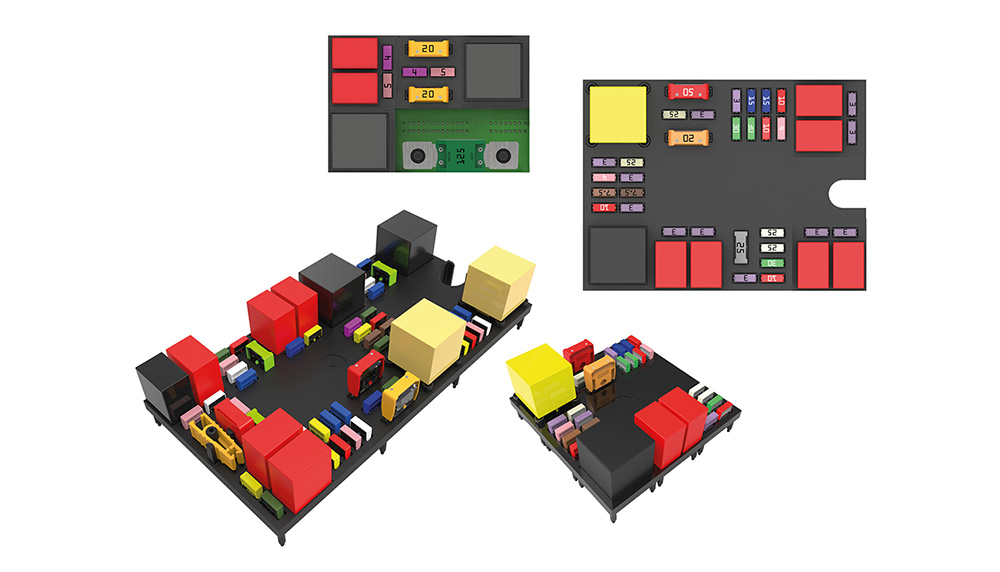

2 The mask can have different sizes and geometries
The masks can have different sizes and geometries up to a total of 35 modules (7x5) selected from the range available, offering extensive configurability. The customers can choose housings for all of our different blade fuse types, Mini, Uni, Maxi, M8Compact and MaxiCompact; for Mini, Micro and Maxi Relays and some accessories too. If necessary, it is also possible to provide for the use of screw-type power fuses, which will be bolted directly on the PCB.

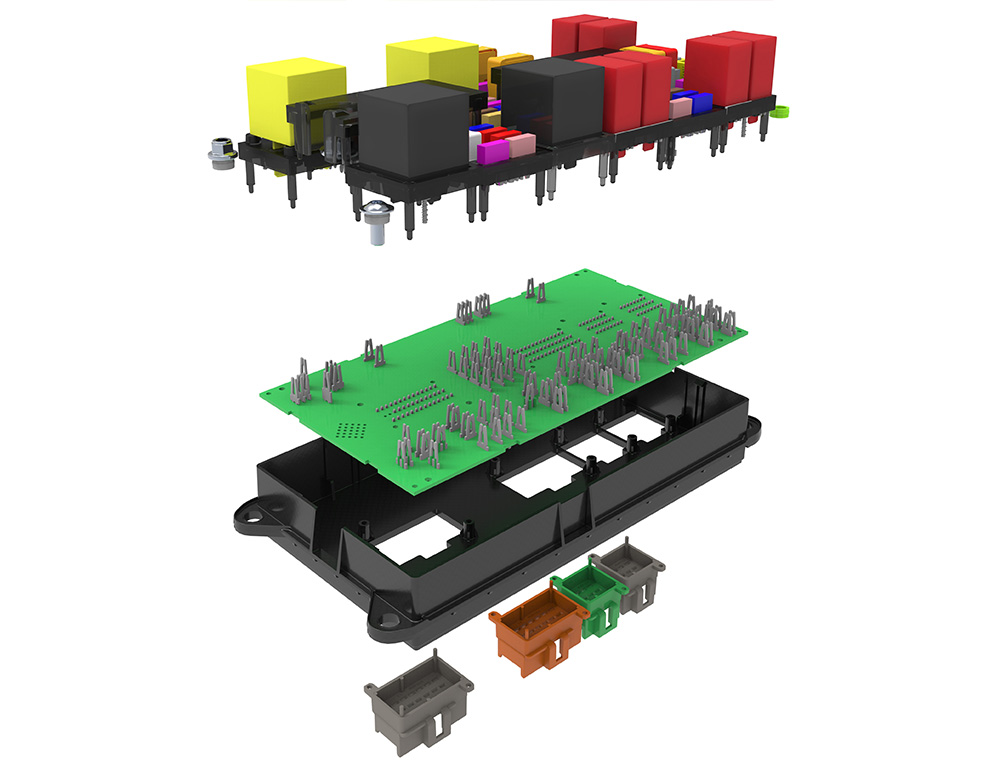

3 The printed circuit board
The PCB itself is fully customizable to match the specific electrical architecture and pinout of the target application. MTA employs press-fit technology for assembling fork-type contacts and output connector tabs, ensuring reliable and vibration-resistant connections without the need for soldering. This technique not only improves production efficiency but also enhances the durability of the final product.

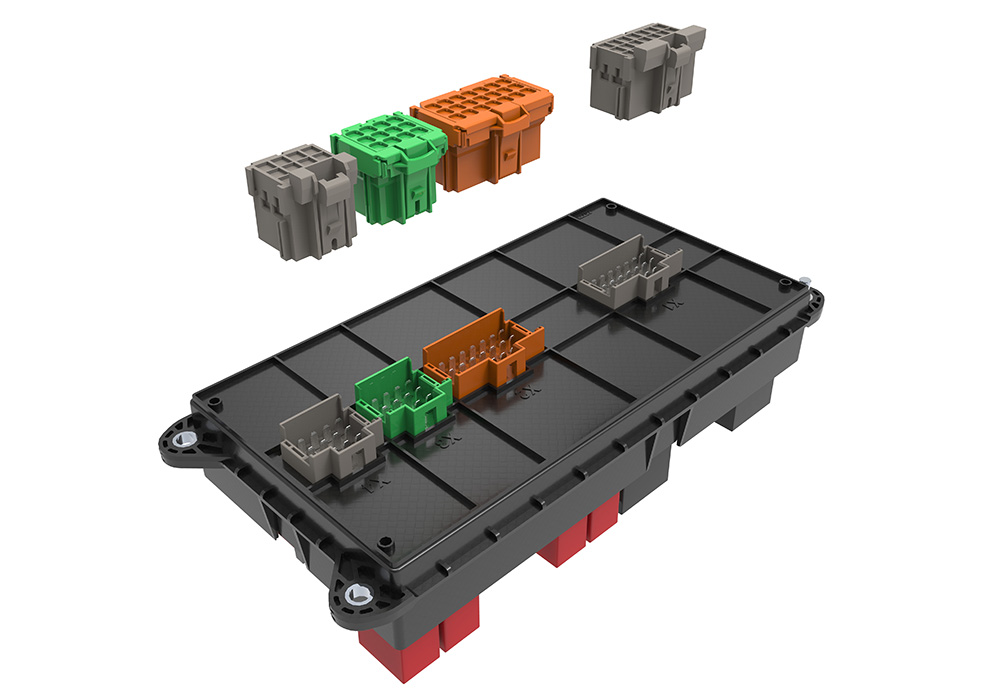

4 Top or bottom side connectors
The positioning of the connectors is fully customizable. Depending on the customer’s requirements, connectors can be placed on the top or bottom of the unit, allowing for optimal cable routing and space utilization.

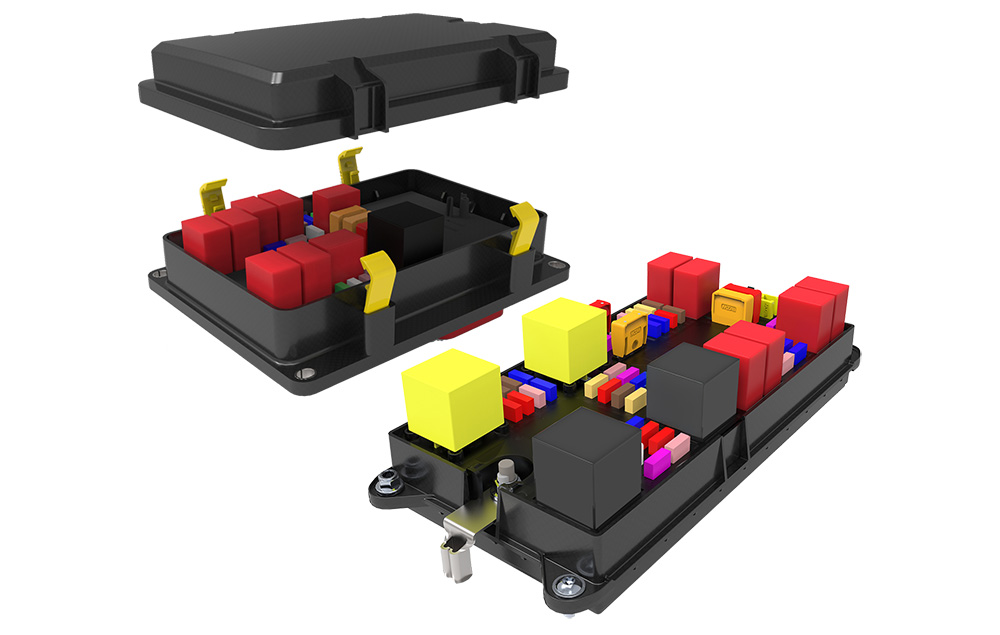

5 Cabin or Engine Bay
The Cube Box is available in open and sealed versions, depending on the environmental requirements of the application. The sealed version is particularly suited for engine bay installations, where exposure to moisture, dust, and temperature fluctuations is a concern. The Cube Box meets stringent protection standards, offering IP67/IP6K9K ratings that ensure reliable operation even in harsh conditions.
Cost effectiveness and efficiency
Low tooling and engineering costs thanks to standardised processes and housings.
Short time-to-market
The customized PDU can be obtained in very short times thanks to the possibility to compose it from a range of exsisting modules.
