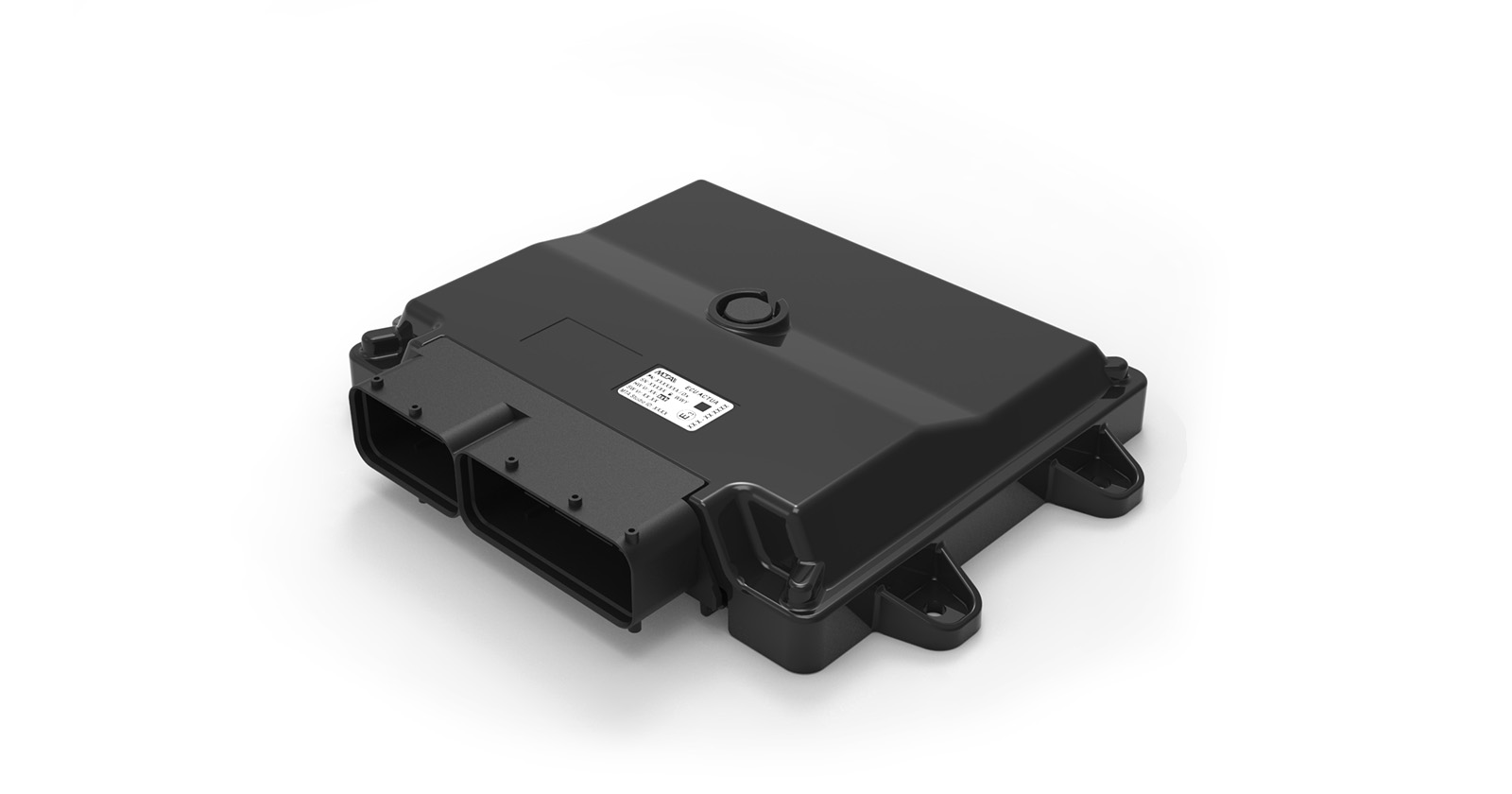

Actua



Features

- Universal controller for agricultural or off-highway vehicles
- System supervisor for safety application

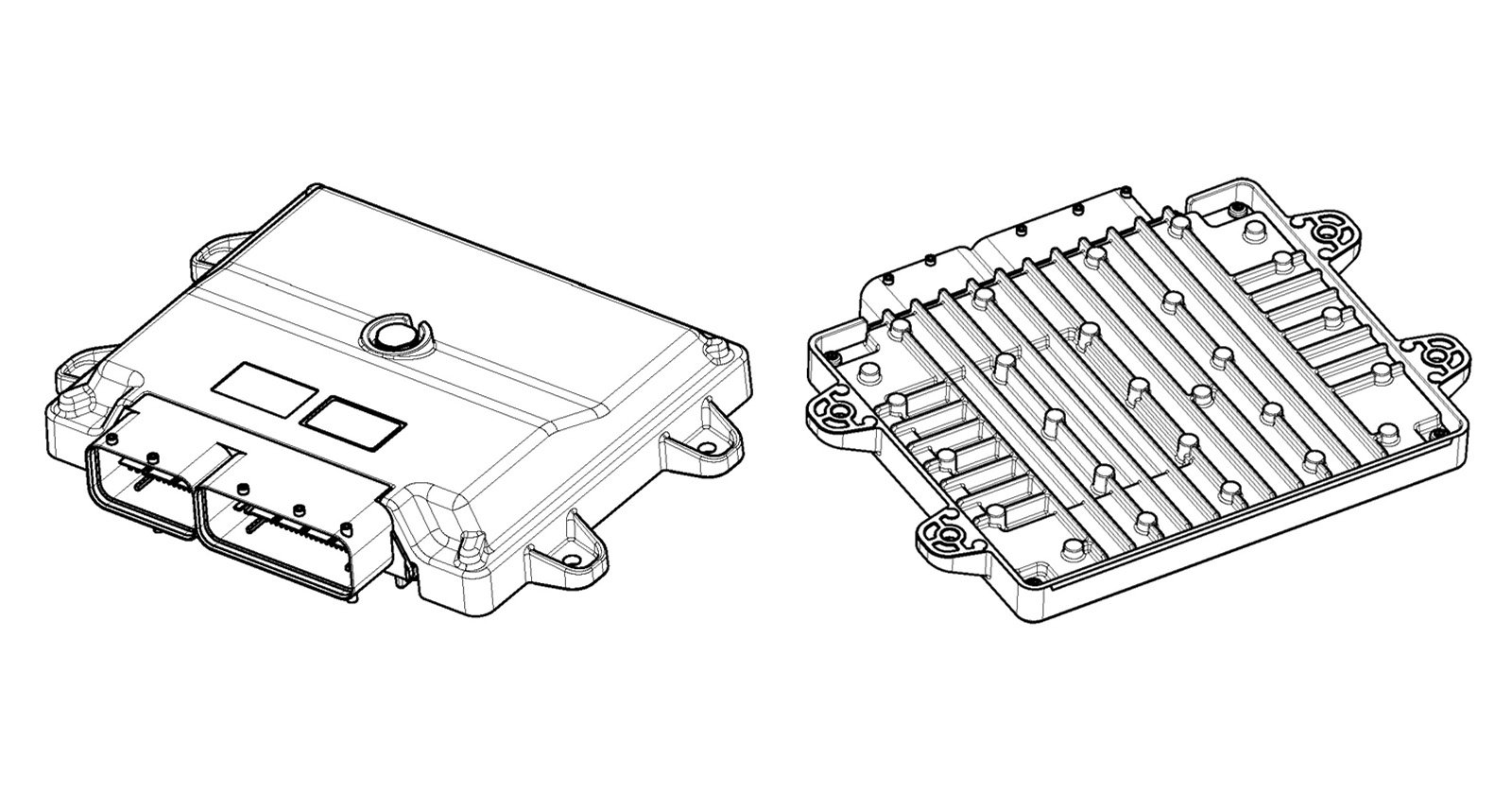

- Dimensions: 185 x 221 x 42 mm (excluding fixing points and connector)
- Power supply: 12 Vdc (9-16 Vdc) or 24 Vdc (18-32 Vdc)
- Protection degree: IP67
- 58 inputs, 32 outputs, 2 Vref 5 Vdc/8 Vdc outputs, 1 Vref 15 Vdc output (at 24 Vdc) and 1 h-bridge
- 4 CAN bus, 2 LIN, 1 USB (optional), 1 Ethernet BroadR-Reach (optional), 1 RS232 (optional) interfaces
- RTC (optional)
- Connector: Tyco 154 pins
- 3 axis accelerometer (optional)
- External flash memory for datalogging (optional)
